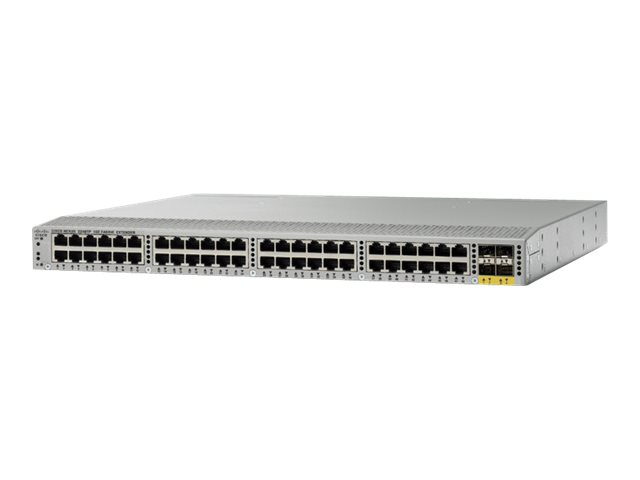

Cisco Nexus 2248TP-E GE Fabric Extender

Ekspansionsmodul - Gigabit Ethernet x 48 + 4 x SFP+ (uplink) - for Nexus 5010, 5020, 7000, 7009, 7010, 7010 Fabric-2
SKI Ikke på lager pt.
Producent Cisco
Varenummer N2K-C2248TP-E-1GE=
  • log ind for pris
  • Information
    • Forty-eight 100/1000 BASE-T server access ports
    • Four 10 gigabit Ethernet lossless uplink and fabric ports using Cisco Fabric Extender Transceiver (FET) SFP+, Short-Reach (SR) and Long-Reach (LR) SFP+, copper interconnects
    • Connection to the Cisco Nexus 5000 series parent switch at first customer shipment
    • Support for cost-effective Cisco FET for uplink and fabric link connectivity, well suited to unified fabric environments
    • Support for host PortChannel and virtual PortChannel capabilities
    • Highly scalable distributed modular system with up to 1152 100/1000 BASE-T ports
    • Compact one-rack-unit form factor
    • With standard front-to-back cooling, all switch ports are at the rear of the unit in close proximity to server ports, aligned with the hot aisle
    • With reversed airflow, ports are aligned with the cold aisle
    • Hot-swappable fan trays
    • Accessibility of all user-serviceable components
    • Operation as a remote I/O module, extending the switch fabric for Cisco Nexus 5000 series switches
    • Capability to be mixed and matched with different types of Cisco Nexus 2000 series Fabric Extenders to the same parent switch to support various types of connectivity
    • Homogeneous policies across a large number of ports
    The Cisco Nexus 2248TP-E meets general-purpose data center needs. In addition, it has 32-MB buffers and enhanced statistics counters specifically optimized for data center applications such as big data, parallel storage, and video editing applications. The Cisco Nexus 2248TP-E comes with 48 100/1000 BASE-T host ports and, enhanced small form-factor pluggable 10 gigabit Ethernet uplinks.
