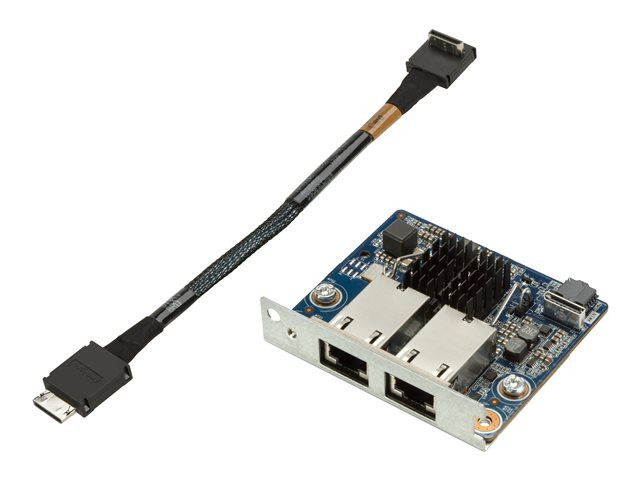

HP Z Dual Port Module

Netværksadapter - 10Gb Ethernet x 2 - for Workstation Z6 G4, Z8 G4
SKI Ikke på lager pt.
Producent HP
Varenummer 1QL49AA
  • log ind for pris
  • Information
    • Advanced throughput and latency performance
    • Operates at 1 Gbps / 10 Gbps, auto-negotiation, on both ports
    • 10GBase-T connectivity
    • Up to a theoretical 20 Gbps bidirectional near line rate throughput per port
    • Remote Direct Memory Access (RDMA) using internet Wide Area RDMA Protocol (iWARP)
    • SR-IOV capable in hardware
    • Support for Preboot eXecution Environment (PXE)
    • Energy Efficient Ethernet (EEE) for low power consumption during periods of low data activity
    The HP Z 10GbE Dual Port Module is a 10GBase-T adapter utilizing the Intel X722 MAC and X557-AT2 PHY pairing to deliver full line-rate performance, utilizing CAT 6A UTP cabling. Providing high-performance Ethernet connectivity, it is ideal for use in workstation, virtual workstation and cloud computing environments. It supports enterprise class features (VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot) and virtualization features (VMware NetQueue and Microsoft VMQ). The module was developed to be a low-cost option without the need of a PCIe slot, which can help with network transitions to 10G.
