Broadcom BCM957504-M1100G16

Netværksadapter - OCP - 100 Gigabit Ethernet x 1
SKI Ikke på lager pt.
Producent Brocade
Varenummer BCM957504-M1100G16
  • log ind for pris
  • Information
    • Supports 50G PAM-4 and 25G NRZ signaling
    • Fully compliant with the SFF-8402 standard
    • PCI Express v4.0 x16 compliant
    • SR-IOV with up to 1k virtual functions (VFs)
    • Function-Level Reset (FLR) support
    • TruFlow flow processing engine
    • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
    • Tunnel-aware stateless offloads
    • DCB support - PFC, ETS, QCN, DCBx
    • RDMA over Converged Ethernet (RoCE)
    • Network Controller Sideband Interface (NC-SI)
    • SMBus 2.0
    • MCTP over SMBus
    • Jumbo frames up to 9 KB
    • Advanced congestion avoidance
    • Multiqueue, NetQueue, and VMQ
    • IPv4 and IPv6 offloads
    • TCP, UDP, and IP checksum offloads
    • Large send offload (LSO)
    • Large receive offload (LRO)
    • TCP segmentation offload (TSO)
    • Receive-side scaling (RSS)
    • Transmit-side scaling (TSS)
    • VLAN insertion/removal
    • Interrupt coalescing
    • Network boot - PXE, UEFI
    • ISCSI boot
    • Wake-on-LAN (WOL)
    • MSI and MSI-X

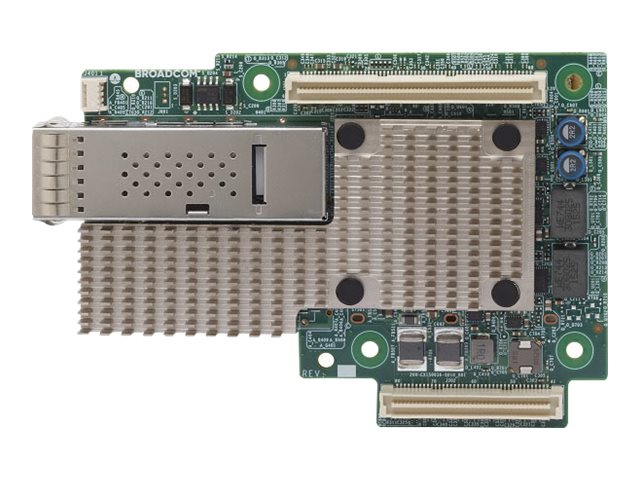

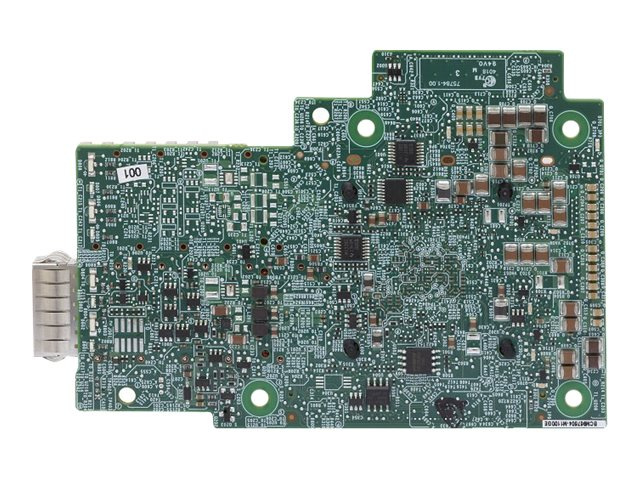

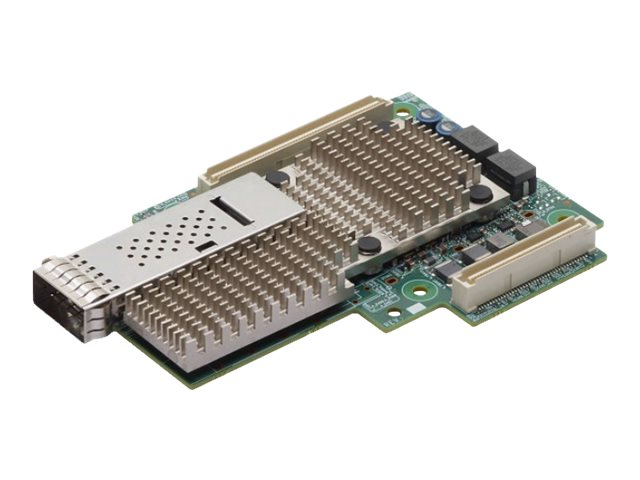

    Broadcom BCM957504-M1100G16 er et single-port 100 Gb/s PCI Express v4.0 x16 netværksadapterkort designet til Open Compute Project (OCP) mezzanine-kortspecifikationen med et QSFP56 netværksstik. Adapteren er designet til OCP Mezzanine v2.0-specifikationen som en Type 2-adapter med kortets omrids i overensstemmelse med de originale v0.5-dimensioner. Adapteren understøtter QSFP56/QSFP28/QSFP+ optiske moduler og kobberkabler med direkte tilslutning. Kortet bruger Broadcom BCM57504 100GbE MAC-controller med en integreret 100GbE SFI-transceiver.
